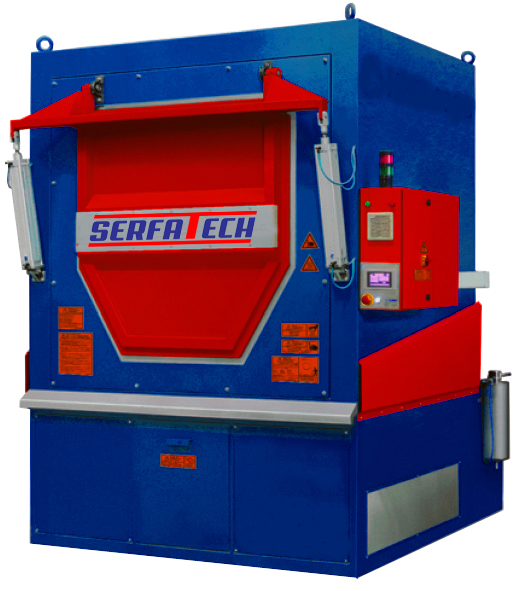

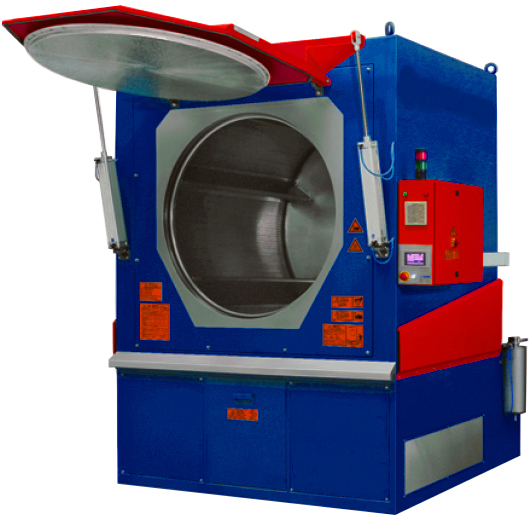

KKM Series Dryers Machines
| Model | Unit | KKM 150 | KKM 200 | KKM 300 |
|---|---|---|---|---|
| Rated Capacty (Dry Loading) | kg/cycle | 150 | 200 | 300 |
| Drum (Diameter x Length) | mm | Ø1650×1400 | Ø1800×1600 | Ø1750×2500 |
| Door Dimension | mm | Ø1150 | Ø1320 | Ø1320 |
| Work Cycle | minute | 30 – 45 | 30 – 45 | 30 – 45 |
| Motor Power | kw | 4,5 | 5,5 | 2 x 6 |
| Drum Speed | rpm | 28 | 26 | 25 |
| Power Consumption of Cycle | kw/h | 280 – 320 | 380 – 430 | 580 – 630 |
| Dimension of Air Exhasut Port | mm | 285×415 | 350×500 | 580×630 |
| Dimension (L x W x H) | cm | 225x213x257 | 225x241x302 | 302x302x284 |
| Weight | kg | 3000 | 4500 | 6000 |
